STEG SDSP10
POWER SUPPLY
Voltange: 8.5-15VDC
Idling current: 0,5A
Switched off without DRC: 5 mm
Switched off with DRC 4 mA
Remote IN voltage: 6-15 VDC
Remote OUT voltage: 12 VDC (130mA)
SIGNAL STAGE
Distortion - THD @ 1kHz, 1V RMS Output: 0,0004%
Bandwith @-3 dB: 20-22kHz
SIN ratio @ A weighted
Master Input: 98 dBA
Auxinput: 96 dBA
Channel Separation @ 1 kHz: 95 dB
Input Sensitivity (Speaker In): 2-15 V RMS
Input Sensitivity (Phone)
Input Sensitivity (Phone)
Max OUTPUT Level (RMS) @ 0.1% THD: 4V RMS
THD+N VS Power 1%: (CH1 CH2 CH3 CH4 CH5 CH6 CH7 CH8) 8x75 W
INPUT STAGE

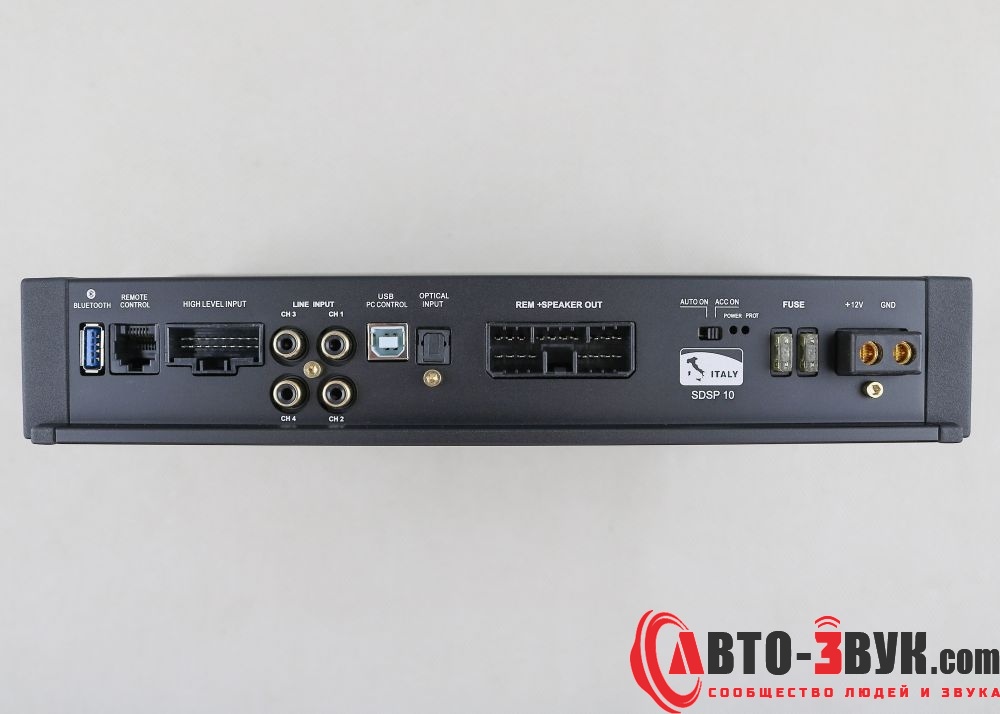

High Level (Speaker) 1.2.3.4.5.6 in
Low level (Pre) 1.2.3.4 in
CONNECTION
From/To Personal Computer: 1 x USB/B(1.1/2.0) 5M
CROSSOVER N.5 (one each output channel)
Filter Type: Full/High/Low Pass /Band Pass
Slope Setting: 6/12/18/24/30/42/48 dB
Crossover frequency: 68 steps @ 20- 20kHz
Phase control indepent setting for each channel: 0-180
