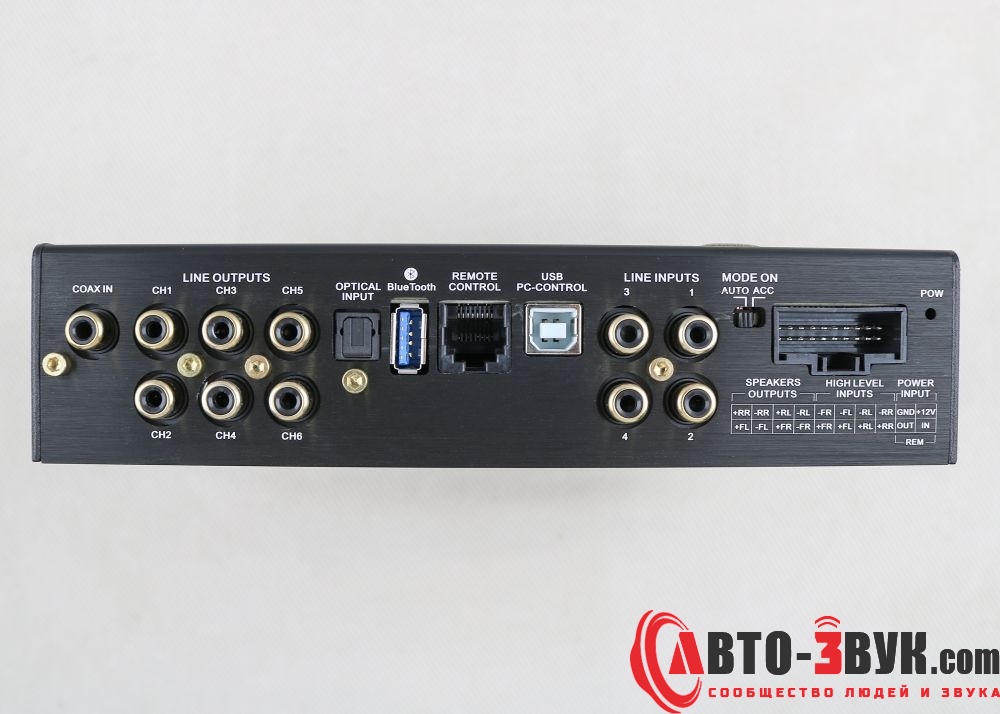

STEG SDSP4
POWER SUPPLY
Voltange: 8.5-15VDC
Idling current: 1.5A
SIGNAL STAGE
Distortion - THD @ 1kHz, 1V RMS Output: 0,01%
Bandwith @-3 dB: 10-20kHz
S/N ratio Full power A-: 98 dB
Master Input: 98 dBA
Hight level input range: 3 - 15 V
THD+N VS Power 1%: (CH1 CH2 CH3 CH 4) 4 x 50 W
INPUT STAGE
High Level (Speaker) 1.2.3.4
CONNECTION
From/To Personal Computer: 1 x USB/B(1.1/2.0) 5M
CROSSOVER N.5 (one each output channel)
Filter Type: Full/High/Low Pass /Band Pass
Slope Setting: 6/12/18/24/30/42/48 dB
Crossover frequency: 68 steps @ 20- 20kHz
Phase control indepent setting for each channel: 0-180
